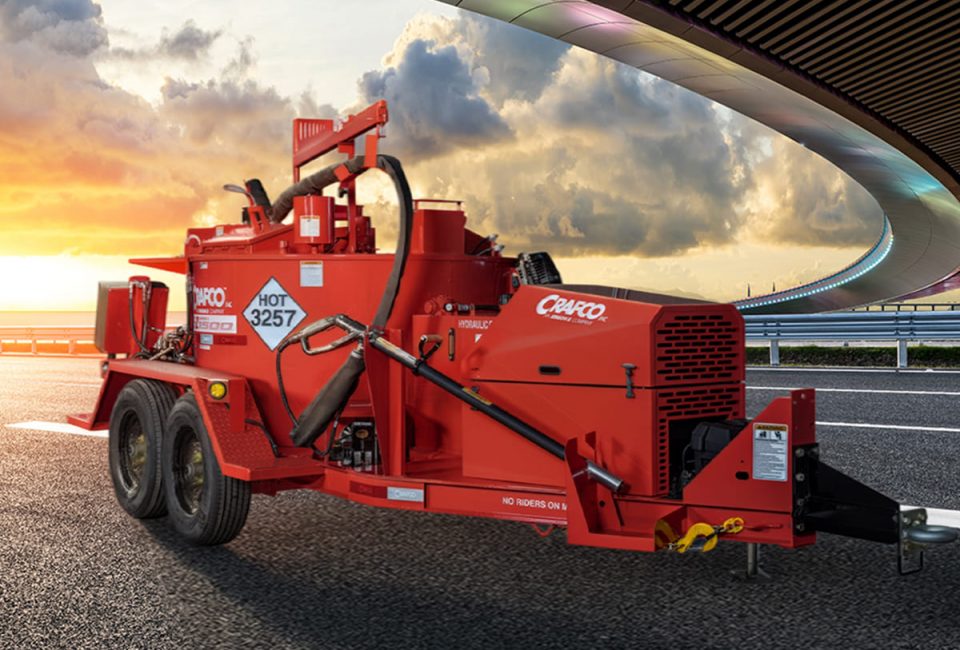

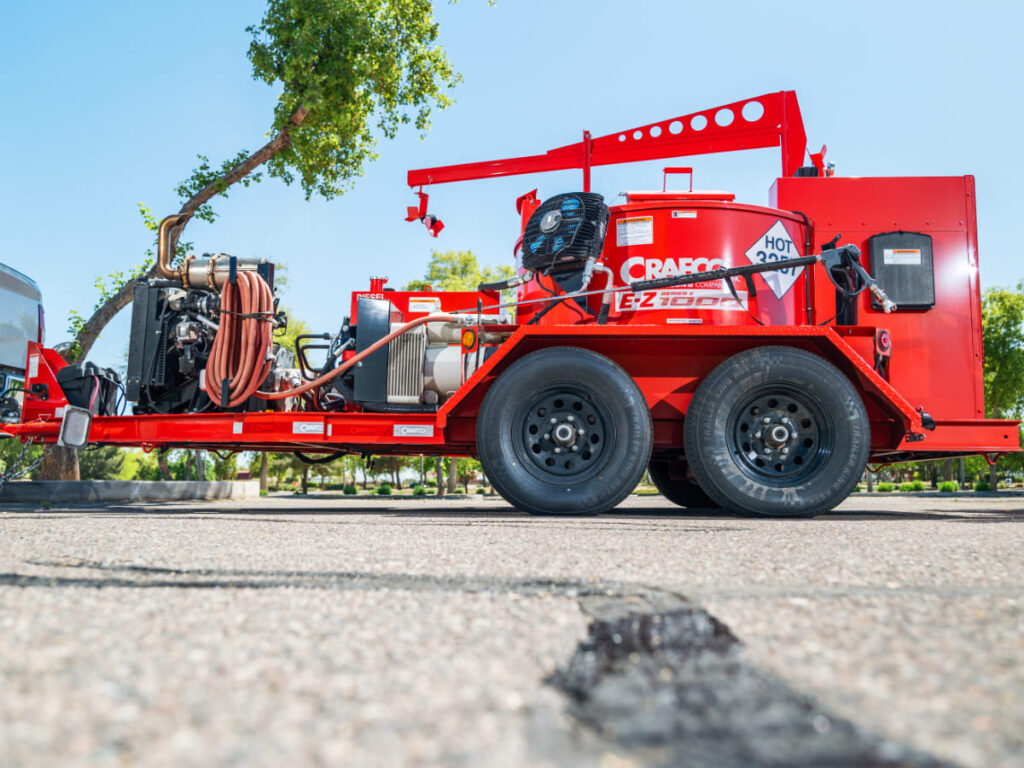

Your crew’s safety is our first priority. Crafco engineered the EZ Series II melters with safety features designed for convenience:
The EZ Series II offers the largest capacity and material heat/recovery rate of any melter in its class, with an innovative heat tower in the center of the tank to improve melt rate.
EZ Series II melters feature large 2” pumps capable of delivering 20 gallons per minute, with true on-demand pumping.
The overhead sliding hose boom eliminates hurdles by maximizing your working radius, protecting hoses from damage, and reducing operator fatigue.
A heat chamber on the back of the melter warms hoses and plumbing for a faster start to your day, while also enabling you to keep working when the temperature drops.
EZ Series II melters are available with electric heated hoses, and our larger 1500-liter melter can be ordered as a double pumper, giving you an independent second hose for twice the output and an increased work area of 760 sq. ft.
EZ Series II melters are engineered to make the most of your time and resources.
A heat transfer tower in the center of the oil-jacketed double boiler tank increases the heating surface area for 95% heat efficiency to significantly speed up material melting and recovery.
Powerful Tier 4 diesel engines conserve fuel to run all day while keeping emissions under control.
The industry-exclusive true on-demand pumping system saves fuel while also reducing wasted sealant. On our double pumper units, the two pumps run independently, with adjustable flow rates for different operators.
A tool is only useful when it works, so Crafco makes no compromises on reliability – starting with quality materials.
Our heavy-duty trailers are constructed from open steel channel to minimize the risk of rust.
Crafco builds all sealant hoses in-house to ensure quality and repairability.
The on-demand pumping system cuts wear-and-tear to reduce maintenance downtime, while powerful bi-directional agitation paddles ensure even heat and mixing.
Our automatic interlocking controls ensure all functions engage properly to protect your melter from damage, while the accessible control panel offers easy monitoring of machine functions.
Your crew’s safety is our first priority. Crafco engineered the EZ Series II melters with safety features designed for convenience:
The EZ Series II offers the largest capacity and material heat/recovery rate of any melter in its class, with an innovative heat tower in the center of the tank to improve melt rate.
EZ Series II melters feature large 2” pumps capable of delivering 20 gallons per minute, with true on-demand pumping.
The overhead sliding hose boom eliminates hurdles by maximizing your working radius, protecting hoses from damage, and reducing operator fatigue.
A heat chamber on the back of the melter warms hoses and plumbing for a faster start to your day, while also enabling you to keep working when the temperature drops.
EZ Series II melters are available with electric heated hoses, and our larger 1500-liter melter can be ordered as a double pumper, giving you an independent second hose for twice the output and an increased work area of 760 sq. ft.
EZ Series II melters are engineered to make the most of your time and resources.
A heat transfer tower in the center of the oil-jacketed double boiler tank increases the heating surface area for 95% heat efficiency to significantly speed up material melting and recovery.
Powerful Tier 4 diesel engines conserve fuel to run all day while keeping emissions under control.
The industry-exclusive true on-demand pumping system saves fuel while also reducing wasted sealant. On our double pumper units, the two pumps run independently, with adjustable flow rates for different operators.
A tool is only useful when it works, so Crafco makes no compromises on reliability – starting with quality materials.
Our heavy-duty trailers are constructed from open steel channel to minimize the risk of rust.
Crafco builds all sealant hoses in-house to ensure quality and repairability.
The on-demand pumping system cuts wear-and-tear to reduce maintenance downtime, while powerful bi-directional agitation paddles ensure even heat and mixing.
Our automatic interlocking controls ensure all functions engage properly to protect your melter from damage, while the accessible control panel offers easy monitoring of machine functions.
With an experienced skid steer operator, the EZ Patcher enables crews to apply significantly more material in a day compared to hand application. It is best suited to patching or sealing long, linear cracks such as longitudinal joints, transverse cracks, and fiber optic trenches.
Crafco never stops testing and refining our designs in response to real-world challenges. Every Crafco machine is backed by our dedicated customer service and industry-leading two-year warranty, so you can have confidence long after your purchase.
EZ Series Side-by-Side Comparison
| EZ Series II 1000 | EZ Series II 1500 | |
| Dimensions | 194” L / 91” W / 91.00” H | 200” L / 93” W / 93” H |
| Shipping Weights | 5,960 lbs / 2,703 kg Approx. | 6,700 lbs / 3,039 kg Approx. |
| Gross Weight | 9,900 lbs / 4,490 kg | 12,000 lbs / 5,443 kg |
| Material Capacity | 265 Gal. / 1000 Liter | 396 Gal. / 1500 Liter |
| Melt Rate | 2,100 lbs / hr | 2,800 lbs / hr |
| Heat Transfer Oil | 36.5 Gal. / 126.8 Liter | 45.5 Gal. / 170.34 Liter |
| Tank Construction | Double Boiler w/ Center Column | Double Boiler w/ Center Column |
| Tank Opening/ Loading Door(s) | (2) 14” x 18” / 355.6 mm x 457.2 mm | (2) 18” x 24” / 457.2 mm x 609.6 mm |
| Loading Height | 56” / 143.5 cm | 56” / 143.5 cm |
| Heat Input | 270,000 Btu | 330,000 Btu |
| Diesel Fuel Capacity | 30 Gal. / 113.6 Liter | 30 Gal. / 113.6 Liter |
| Propane Capacity | N/A | N/A |
| Hydraulic Oil Capacity | 30 Gal. / 113.6 Liter | 30 Gal. / 113.6 Liter |
| Engine Standard | Three Cyl. Isuzu Mod 3CH1 Tier 4 Final, 23.9 BHP @ 3,000RPM | Three Cyl. Isuzu Mod 3CH1 Tier 4 Final, 23.9 BHP @ 3,000RPM |
| Engine Option (w/Compressor) | Three cyl. Yanmar 3TNV86-CT, 43 BHP @ 2850 RPM | Three cyl. Yanmar 3TNV86-CT, 43 BHP @ 2850 RPM |
| Axle Capacity | Dual 5,200 lb. / Torsional ea. | Dual 6,000 lb. / Torsional ea. |
| Tires | ST225 / 75 R15 | ST235 / 80 R16 |
| Air Compressor (Optional) | 100CFM@125PSI | N/A |
| Surface Area Material Tank | 7,406 in2 / 47,780 cm2 | 9,448 in2 / 60,954 cm2 |
| Surface Area Oil Tank | 7,676 in2 / 49,522 cm2 | 9,921 in2 / 64,006 cm2 |
| Ratio of Tank Surface Area | 1.04:1 | 1.05:1 |
| Controls | Digital | Digital |
| Control Location | Rear Control Station | Rear Control Station |
| Hose Style | Standard or Electric | Standard or Electric; Single or Double |
| Wand Style | Standard or Electric | Standard or Electric; Single or Double |
| Hose Compartment | Yes | Yes |
| Material Recirculation | Yes | Yes |
| Boom | Sliding Bearings | Sliding Bearings |
| Burner Box | Removable From Side | Removable From Side |
On top of the numerous standard features, the EZ Series II line offers several additional options to meet your crew’s specific needs.
The EZ Series II 1000 is available with an onboard 100CFM air compressor, while the EZ Series II 1500 can be ordered as a double pumper with two independent hoses.

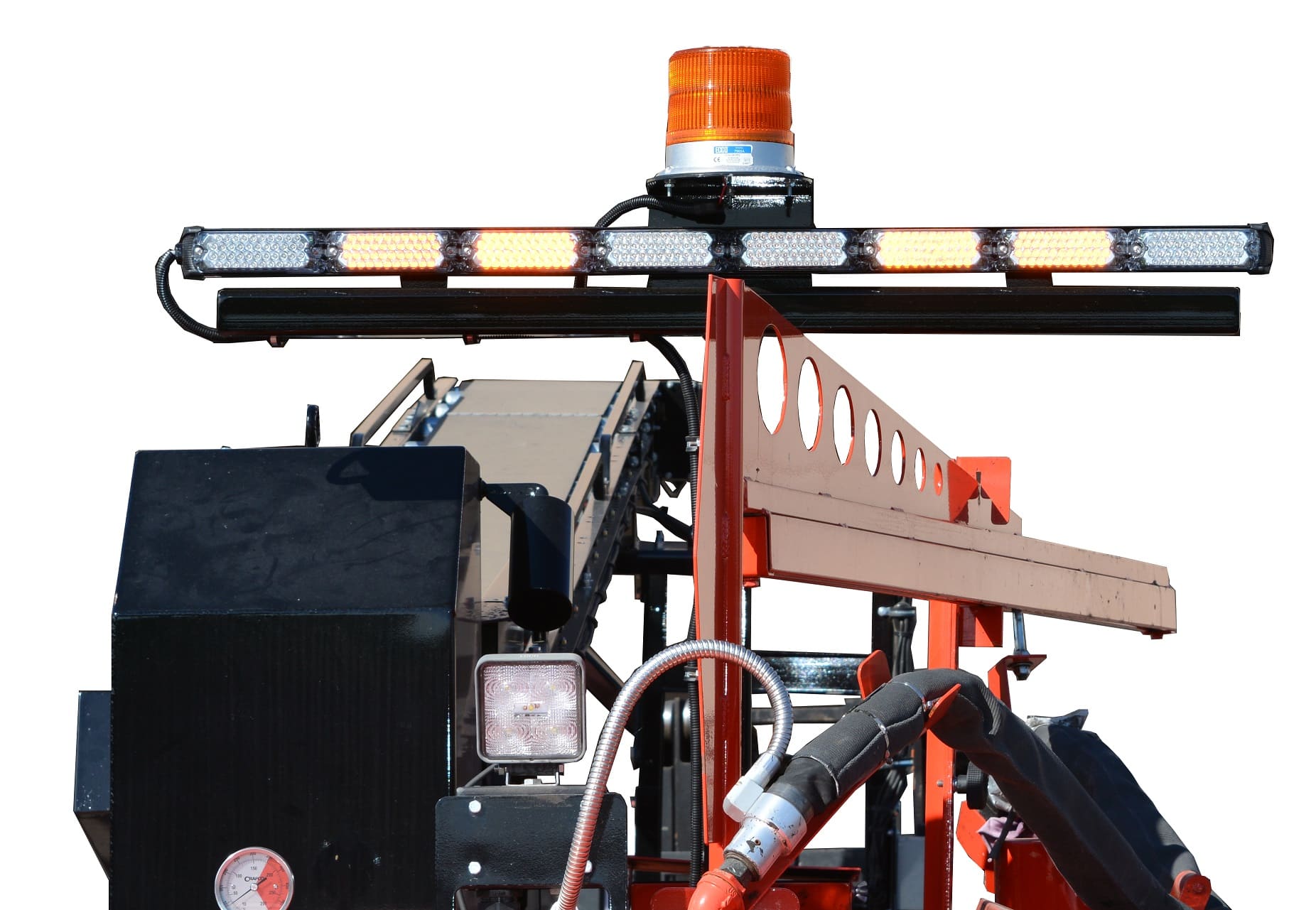

A wide range of equipment lights are available to direct traffic, help crew members stand out safely, and extend working hours.
The Driver Alert System enables easy communication between crew members and the melter operator. With the push of a button, the operator can tell the driver to move forward, stop, or adjust speed. The system features adaptive volume, wireless operation, a waterproof design and easy installation on either side of the wand handle.
Enhance your crew’s safety and efficiency with the Work Area Camera system, which provides the driver with real-time visibility. The 5” color monitor and waterproof camera pair instantly, ensuring a clear view of the work area without leaving the cab.

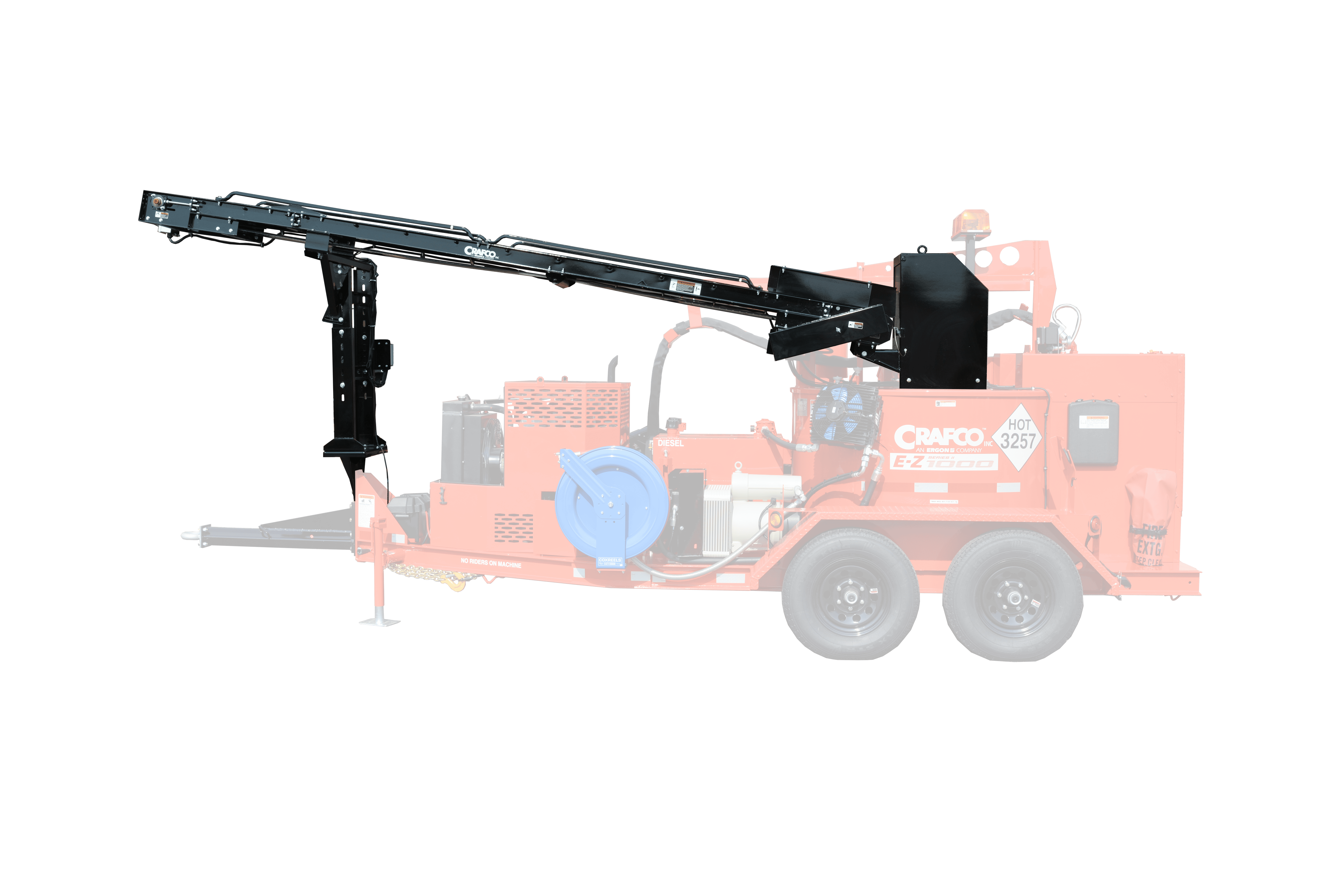

The Autoloader provides efficient sealant block loading from a tow vehicle to the melter, while also keeping the operator safely away from hot sealant. Featuring weather-proof switches, a splash-resistant loading tower and waterproof electrical enclosures, the Autoloader reduces labor, streamlines your workflow, and helps ensure safety – without requiring equipment modifications.
The overnight heaters keep sealant warm overnight so you can get started faster the next day. They plug in to AC power and reduce the heat-up time required to dispense material.
The shot timer kit makes attaching pavement markers simple by dispensing a set amount of material with each pull of the wand trigger. It can be ordered with your machine from the factory or added later to Super Shot or EZ Series II melters that have electric heated hoses.
Additional Options:

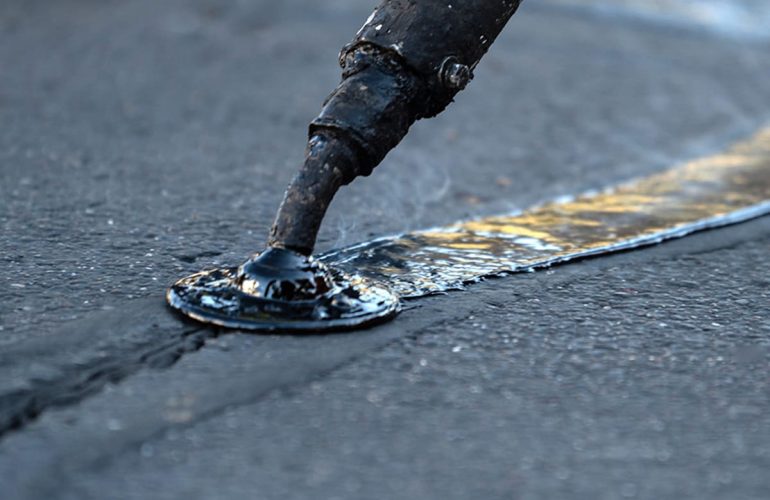

With an extensive line of specialized sealants and outstanding service, Crafco is the most trusted name in crack sealing.

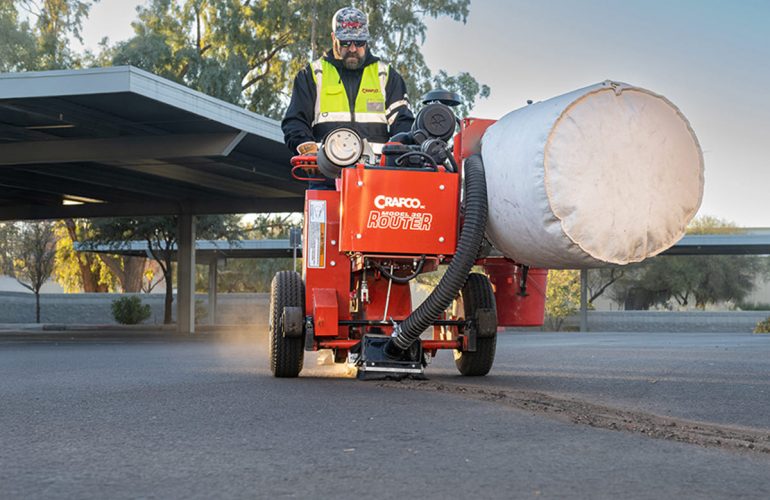

Routing cracks before sealing is proven to extend sealant performance, protecting your pavement for longer.

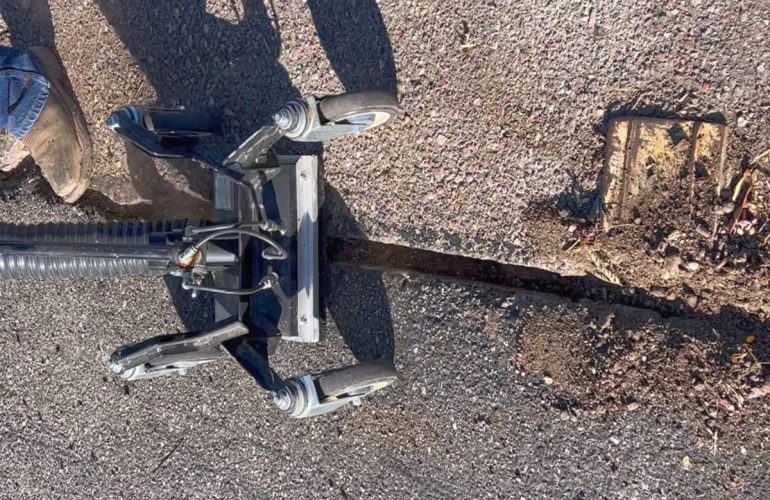

Airborne dust can be a breathing hazard and may violate environmental regulations. Prepare cracks easily and safely with the Crack-Vac 2.
