With more standard features and intuitive design, Crafco Tack Tanks eliminate the obstacles that slow you down.

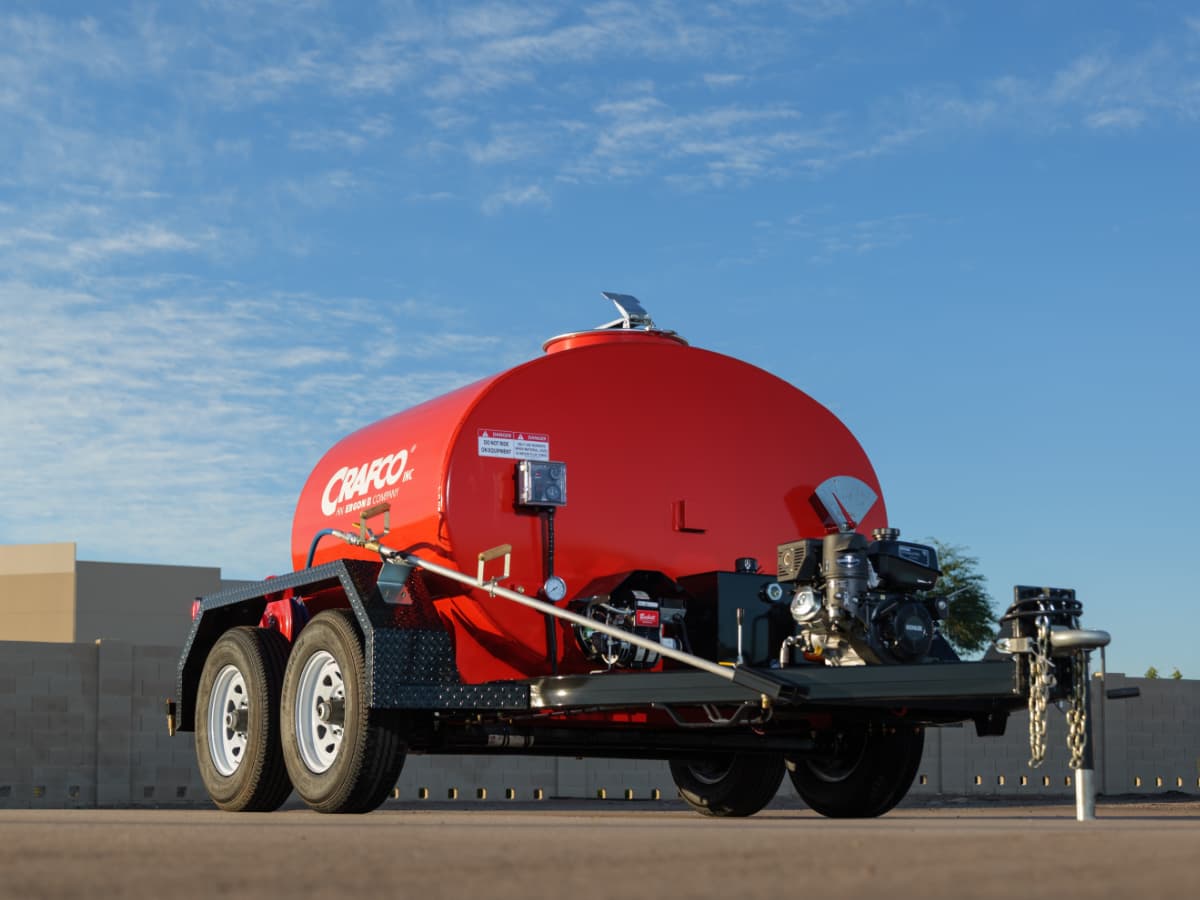

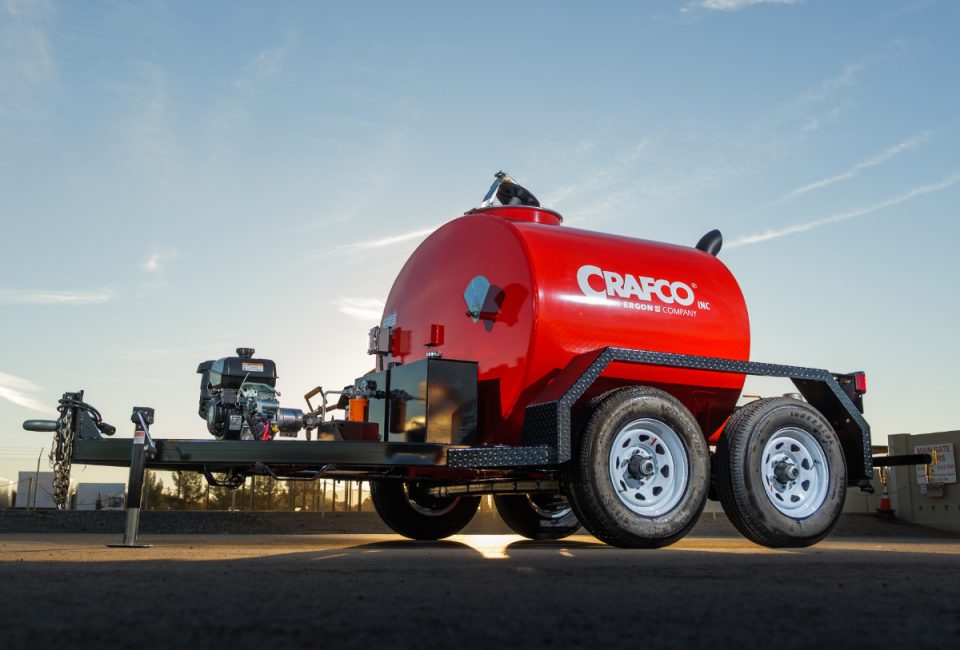

Crafco Tack Tanks are designed to help you get the job done fast and frustration-free. With more standard features like a reversible pump, in-cab control and adaptable spray bar, Crafco Tack Tanks solve common problems that can slow you down. Available in both 300 gallon and 600 gallon sizes, everything about our Tack Tanks is built to meet the toughest standard: yours.

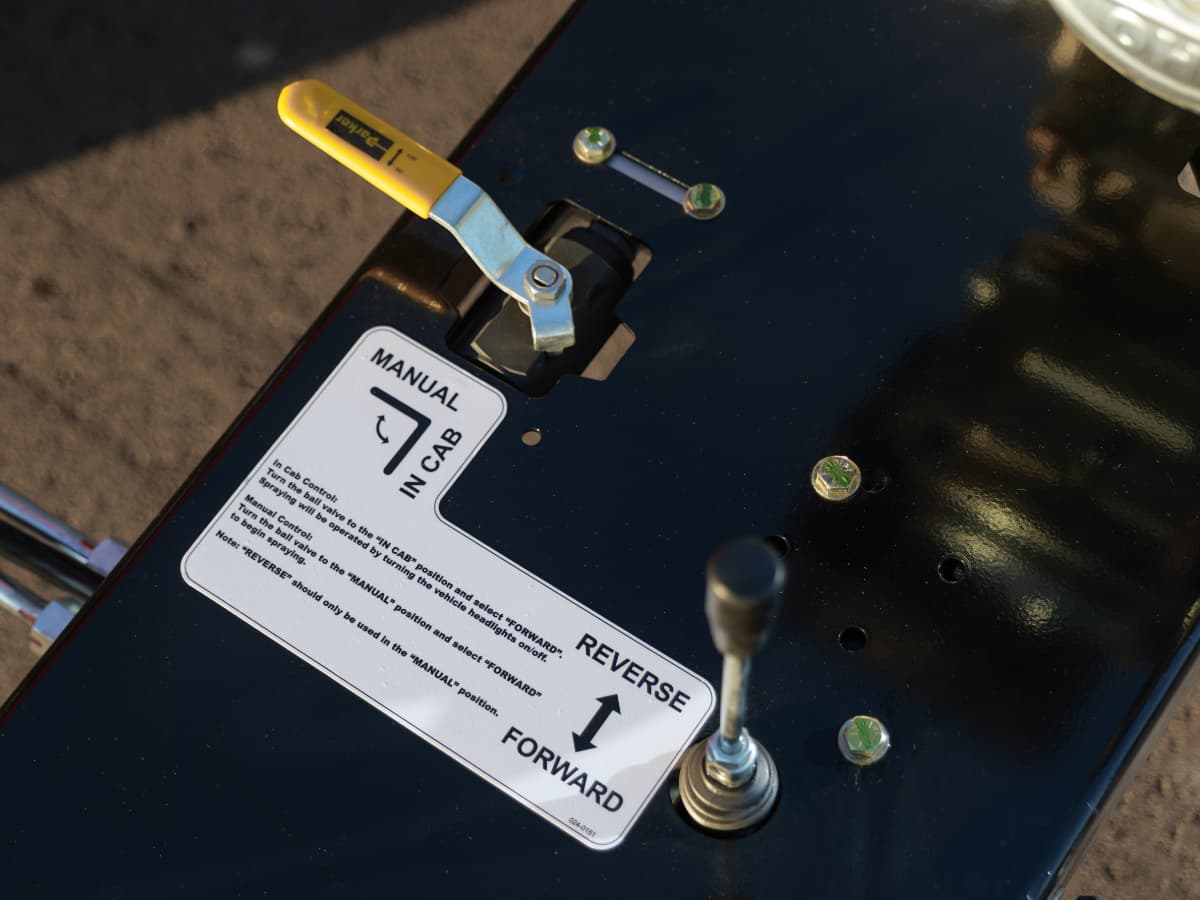

The Crafco Tack Tank’s unique cab control system uses the tow vehicle’s headlight switch to activate the spray bar.

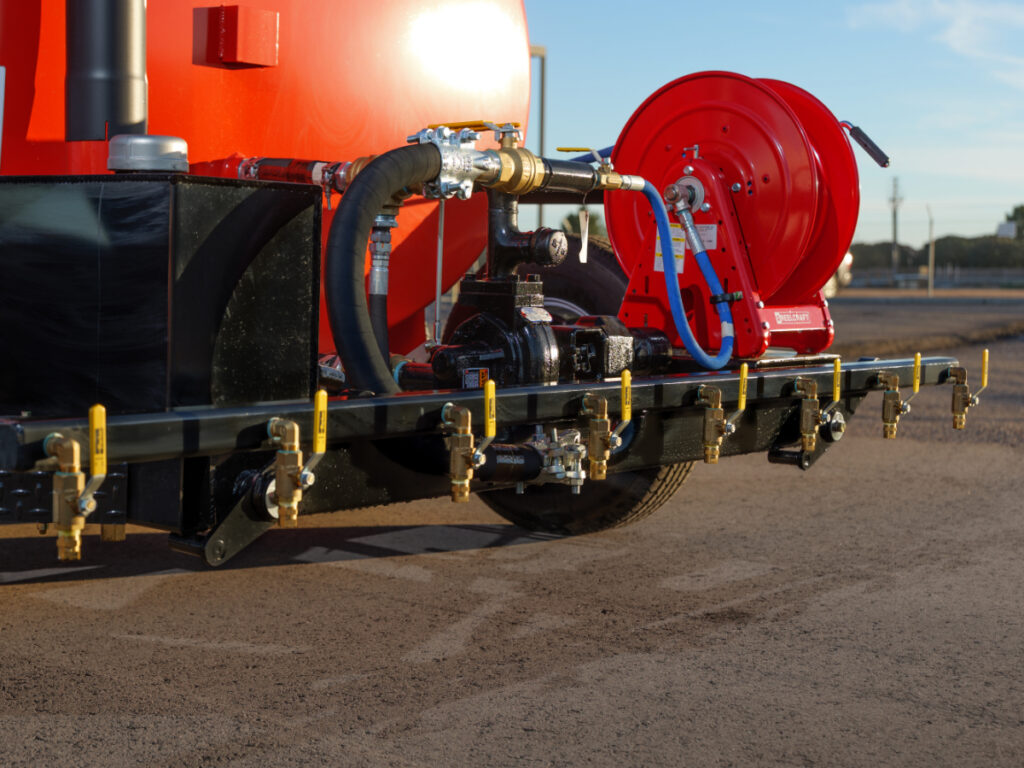

Additionally, the two-position spray bar extends beyond the driver’s side fenders to avoid curbing your wheels and give you more distance when working near open traffic lanes.
The Crafco Tack Tank’s efficient triple-pass flue tube speeds up material heating and makes the most of your fuel.

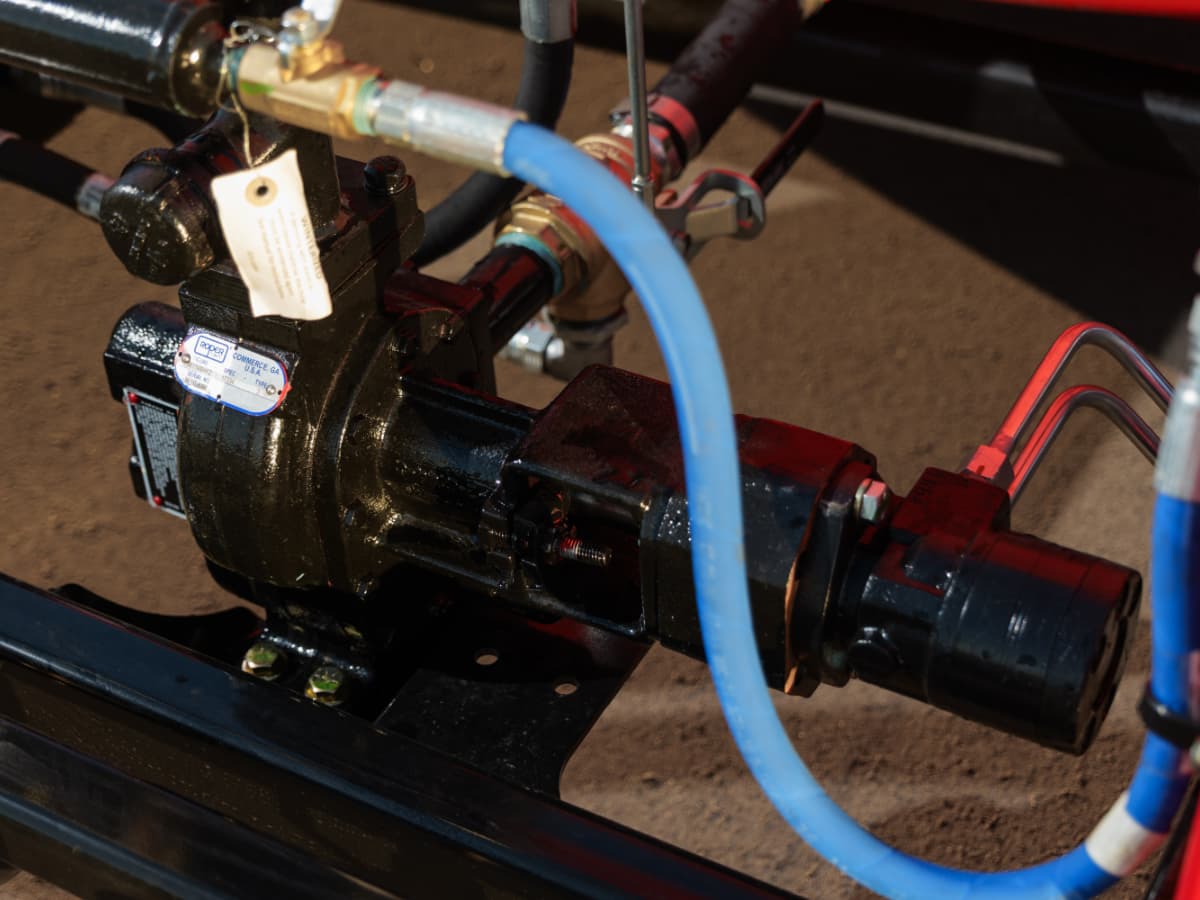

The Crafco Tack Tank’s high-output pump delivers 35 gallons per minute, allowing for a wide range of job types.
The pump is hydraulically driven, allowing the engine to start freely every time – even when the pump is full of material.
The pump can be reversed to reclaim material back into the tank, which makes cleaning easier at the end of the day.

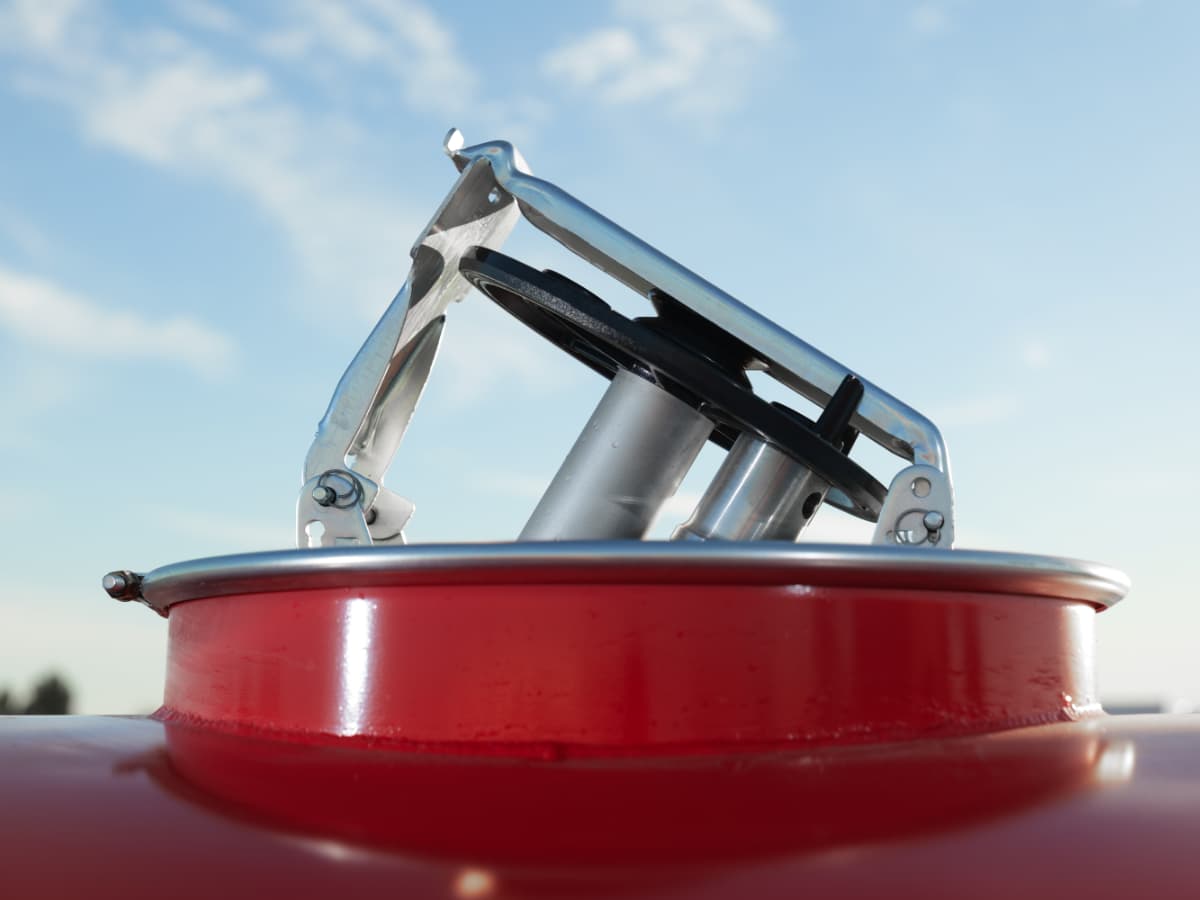

A DOT-rated manhole cover helps you get to the job safely and without a mess.
Additionally, the tank is built with dished and flanged tank heads that increase structural strength and allow the tank to be welded from the inside without overlapping welds.
See the quality and intuitive design that make the new Crafco Tack Tank your secret weapon for better productivity.
| 300 Gallon - Part #93166C | 600 Gallon - Part #93168C | |
| Capacity | 300 Gal / 1,135 L | 600 Gal / 2,270 L |
| Weight (Empty) | 2,250 lbs / 1,020 kg | 2,850 lbs / 1,290 kg |
| Torsion Spring Axle(s) | Single | Dual |
| Axle Capacity | 6,000 lbs / 2,721 kg | 6,000 lbs / 2,721 kg |
| Overall Length | 169” / 430 cm | 169” / 430 cm |
| Overall Width | 96.5” / 245 cm | 96.5” / 245 cm |
| Loading Height | 62” / 158 cm | 70” / 178 cm |
| Tank Heads | Dished & Flanged, Welded Inside & Out | Dished & Flanged, Welded Inside & Out |
| Tank Shell | Standard Oval Cross Section | Standard Oval Cross Section |
| Baffle | NA | with Crawl Hole |
| Manhole | 20” / 51cm | 20” / 51cm |

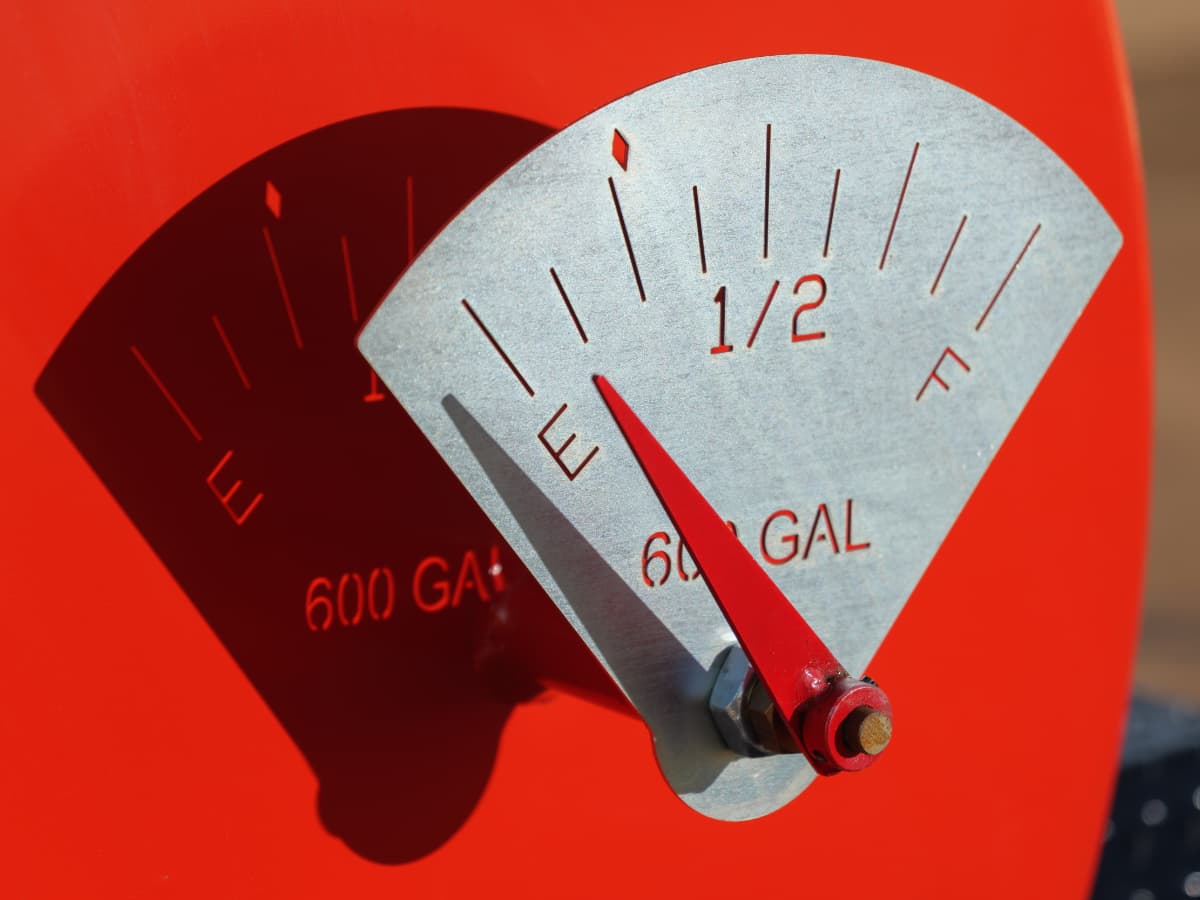

| Contents Guage | Yes | Yes |
| Asphalt Pump | 35 GPM / 130 LPM, Reversible | 35 GPM / 130 LPM, Reversible |

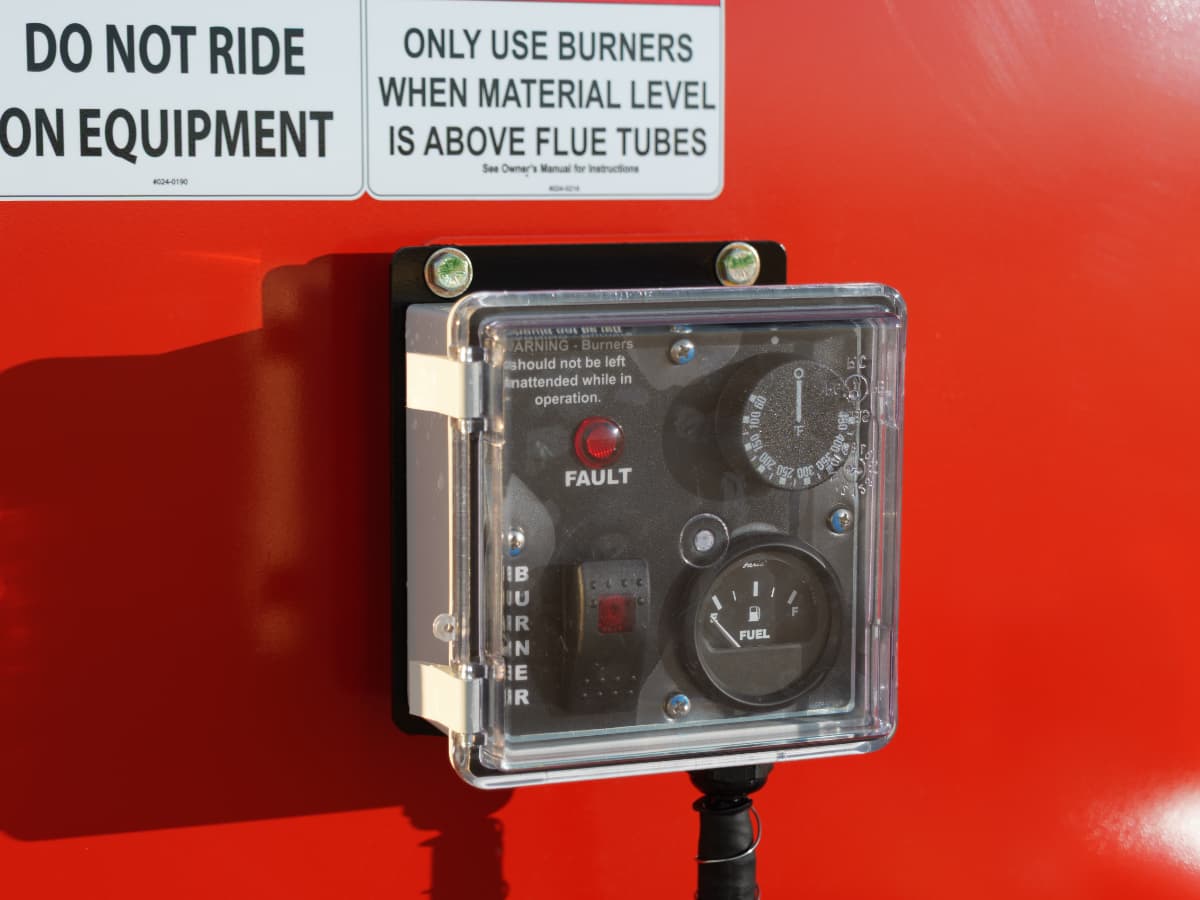

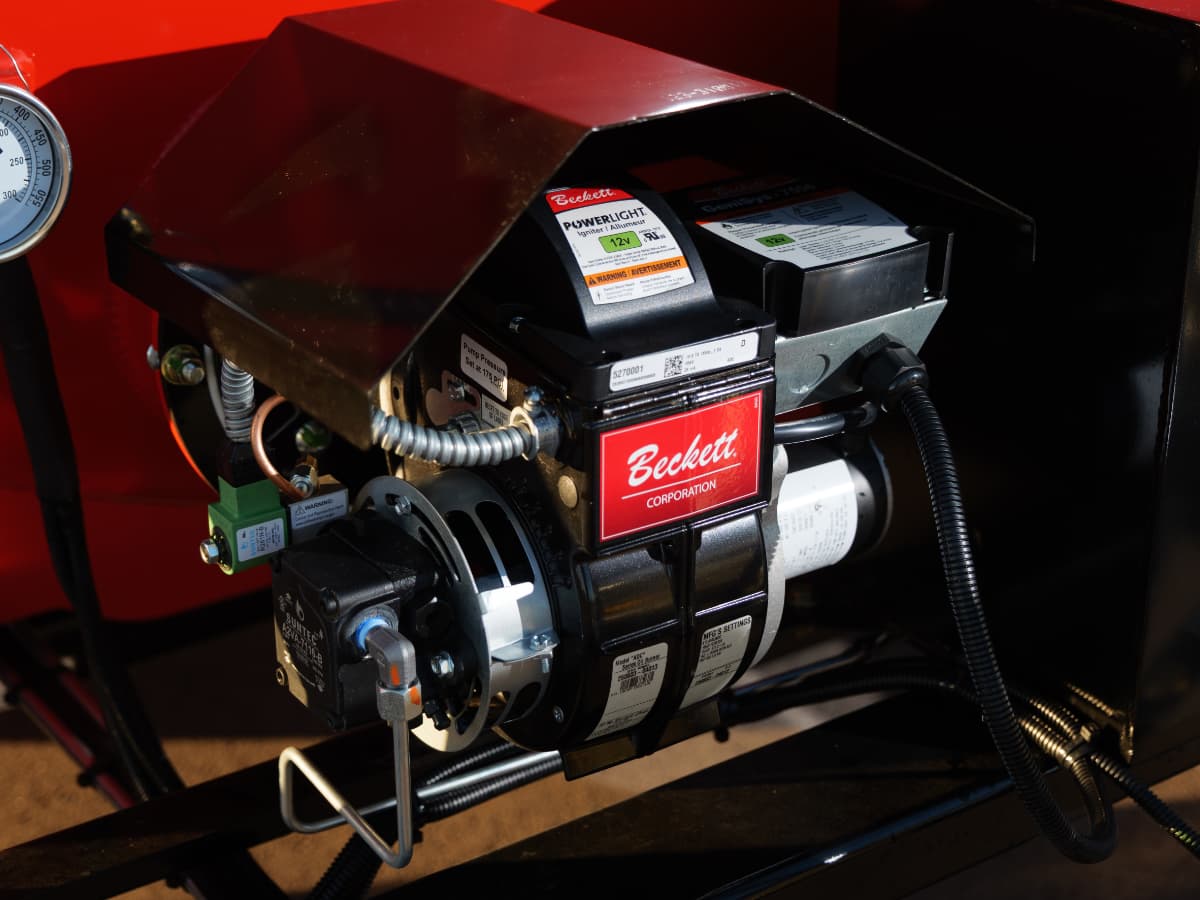

| Burner | Diesel w/ Thermostatic Control | Diesel w/ Thermostatic Control |
| Flue | 8” / 20 cm Diameter, Single Flue Tube with Triple Tank Pass | 8” / 20 cm Diameter, Single Flue Tube with Triple Tank Pass |

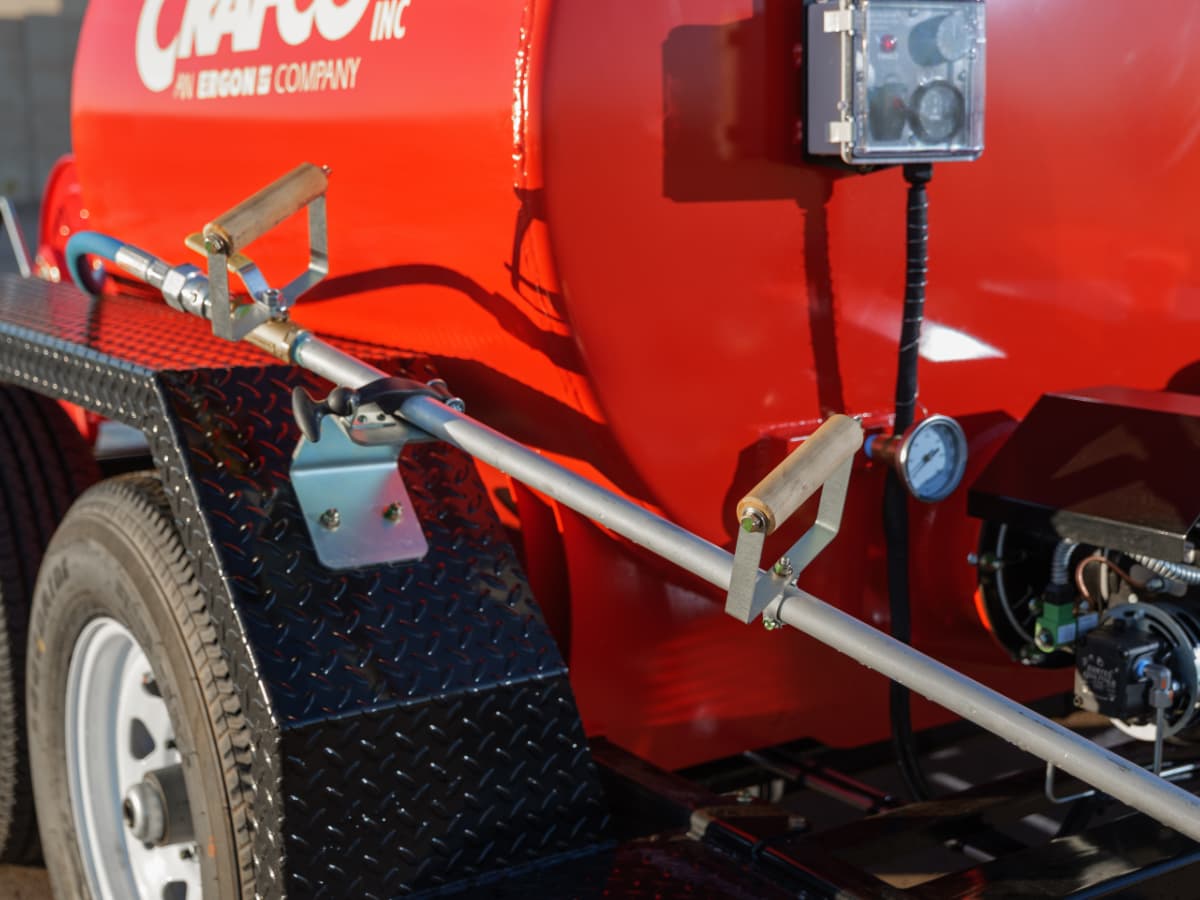

| Hand Spray Wand | Single Nozzle | Single Nozzle |
| Hand Spray Hose | 40 feet / 12 meters, Manual Reel | 40 feet / 12 meters, Manual Reel |
| Spray Bar Width | 8 feet / 2.44 meters | 8 feet / 2.44 meters |
| Spray Bar Control | Manual or In-Cab | Manual or In-Cab |
| Thermometer Type | Dial Thermometer, 50° - 550° F | Dial Thermometer, 50° - 550° F |
| Engine Type | 1 Cylinder - Electric Start, Air Cooled | 2 Cylinder - Electric Start, Air Cooled |
| Engine Fuel | Gasoline | Gasoline |
| Engine Power | 9.5 HP (SAE/1394), 7kW | 9.5 HP (SAE/1394), 7kW |
| Solvent Tank | 9 Gal. / 19 L | 9 Gal. / 19 L |

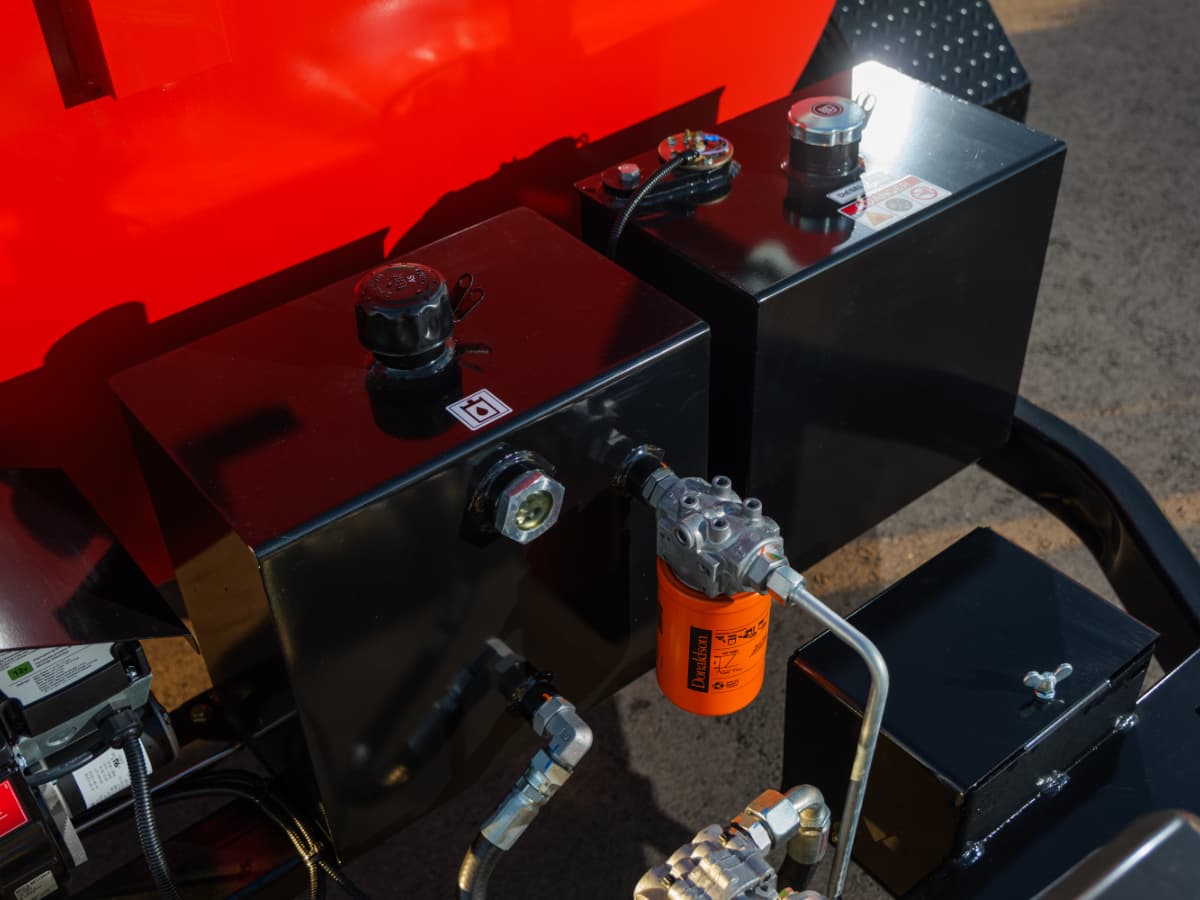

| Hydraulic Tank | 9 Gal. / 19 L | 9 Gal. / 19 L |
| Diesel Tank (Burner) | 9 Gal. / 19 L | 9 Gal. / 19 L |
| Tires | 225/75R15 | 225/75R15 |
| Brakes | Electric, Single Axle | Electric, Single Axle |

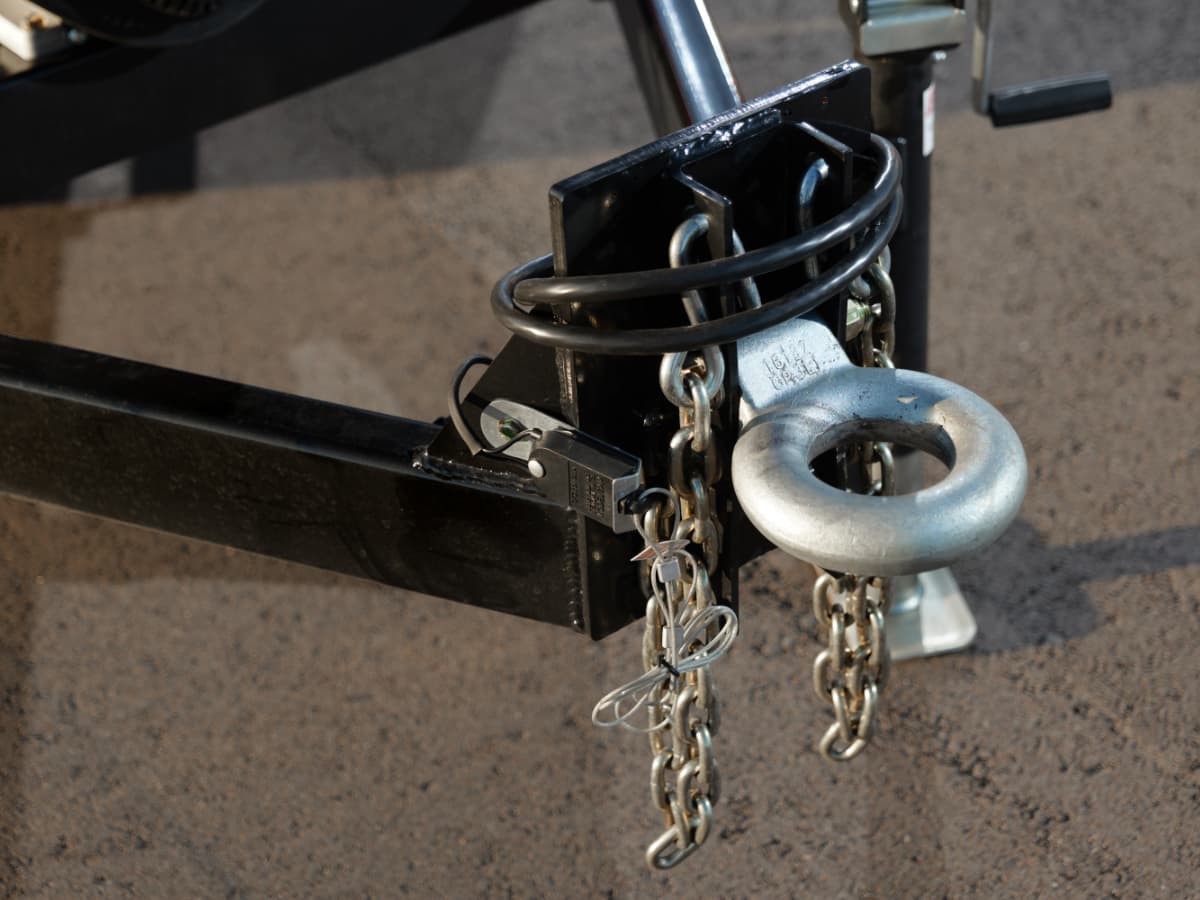

| Trailer Hitch | Pintle Eye, 2 ¾” / 70 mm | Pintle Eye, 2 ¾” / 70 mm |
| Trailer Braking | Electronic Break-Away w/ Safety Chains | Electronic Break-Away w/ Safety Chains |
| Trailer Wiring | Trailer Lighting, Standard | Trailer Lighting, Standard |
